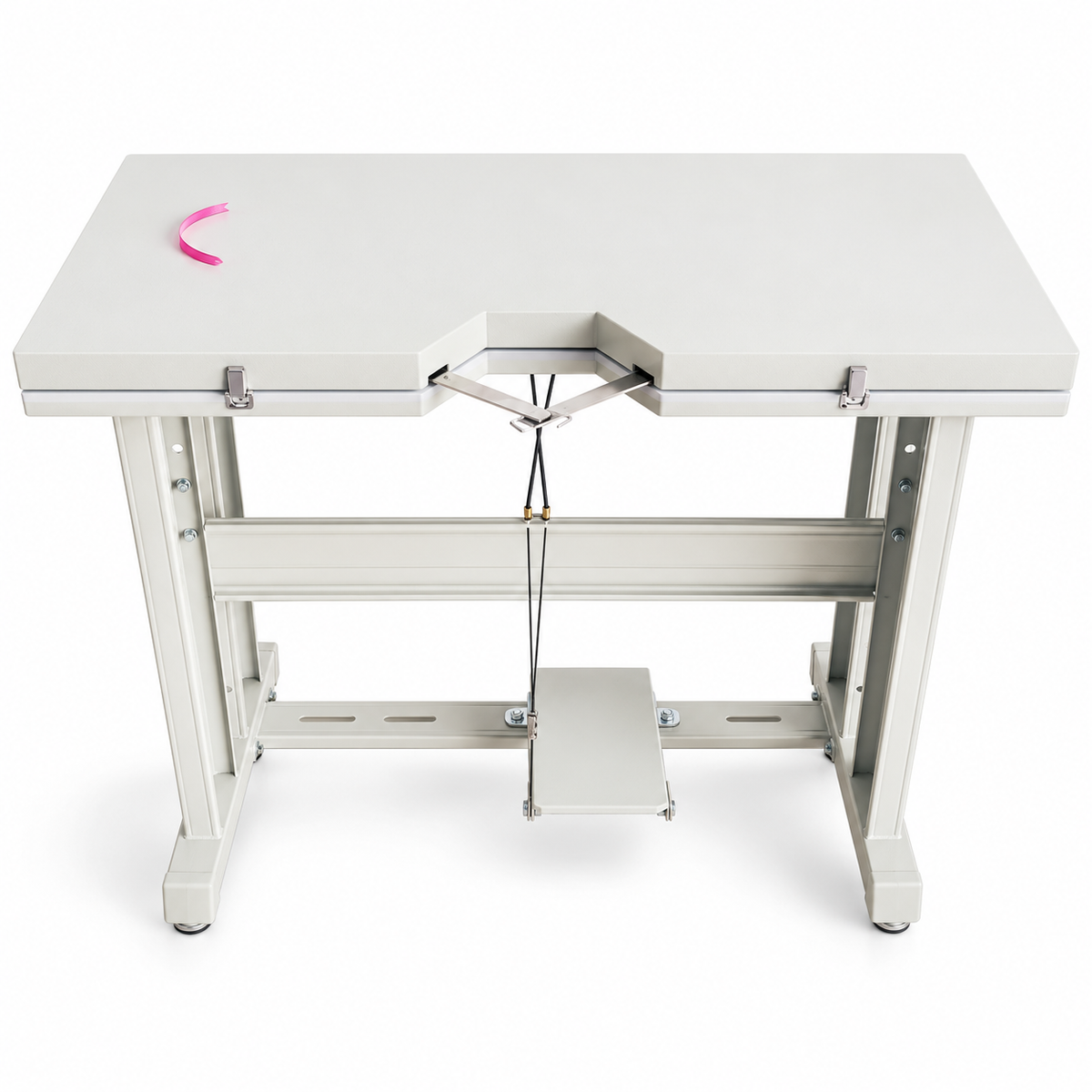

ML-D200 Bow Tying Machine
The ML-D200 is a semi-automatic bow tying machine with a foot-operated mechanical linkage. The operator manually positions the ribbon on the support arms and hooks, then presses the foot pedal while guiding the ribbon ends forward to form the bow. No external electrical power is required.
Technical Specifications
| Model | ML-D200 |
|---|---|
| Operation | Semi-automatic |
| Actuation | Foot pedal |
| Mechanism | Mechanical linkage |
| External Electrical Power | Not required |
| Weight | 28 kg |
| Package Dimensions (L × W × H) | 960 × 560 × 250 mm |
Operating Procedure
-
Position the Ribbon
Fold the ribbon in half over the support arms, then place the upper end in the left hook and the lower end in the right hook.
-
Tie the Bow
Hold both ribbon ends and press the foot pedal, moving your hands forward with the hooks to form the bow.
-
Remove and Finish
Release the foot pedal, remove the bow, and gently adjust its shape by hand.
Request a Quote
ML-D200 Semi-Automatic Bow Tying Machine
